SPECIAL RF SYSTEMS / AMPLIFIERS

ANCILLARY EQUIPMENT

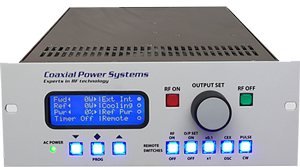

RFGC 50-600W

Special RF system combining a generator from the 2U, half rack range and automatic matching network, complete with controller into one 2U full rack unit.

(50W / 100W / 150W / 300W / 600W)

Precision power control fully adjustable between 0-100%.

Frequency range 13.56MHz and 27.12MHz, others available on request.

RF Generator and AMN Controller Combined

Special RF system combining a generator from the 2U, half rack range and automatic matching network controller into one 2U full rack unit.

(50W / 100W / 150W / 300W / 600W)

An  automatic matching network is supplied as a separate unit

Precision power control fully adjustable between 0-100%.

Frequency range 13.56MHz and 27.12MHz, others available on request.

RFG Compact

Generator from the 2U, half rack range which is shorter.

(50W / 100W / 150W / 300W / 600W)

Precision power control fully adjustable between 0-100%.

Frequency range 13.56MHz and 27.12MHz, others available on request.

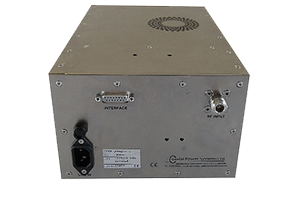

CT 600

Automatic matching network and controller combined.

Used when capacitor position information is not required.

600W

AMN, AMNC combined

Automatic matching network and controller combined.

(50W / 100W / 150W / 300W / 600W)

Frequency range 13.56MHz and 27.12MHz, others available on request.

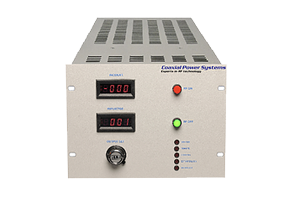

RFA 300WB - RF WIDEBAND AMPLIFIER

The RF Wide-Band Amplifier manufactured by Coaxial Power Systems Ltd is a precision unit intended for scientific and industrial applications.  This unit is capable of producing 300W at frequencies in the range of 10MHz - 100MHz.  An external frequency generator is required to set the frequency.  This unit should be used in conjunction with the CPS MMN 500 manual matching network.

Rated at 300w

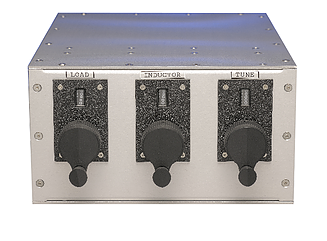

MMN 500W-100MHz

Manual Matching Network specifically for use with the RFA300 WB amplifier.

500W

Adjustable load and tune capacitor positions and inductor.

RF ELECTRO-BOND 600 (EB600)

RF Dielectric System designed for various RF heating/drying applications. Provides reliable RF heating and accurate control to meet your process requirements. The particular model shown is portable and specifically aimed at drying/curing wood adhesive products.
