RF MATCHING NETWORKS

TUNERS
AMNC - Matching Network Controller

The AMN controller is used to control and monitor the Automatic Matching Network.

The controller unit is compact, robust and reliable.

AMN 150 (150W)

High Efficiency automatic matching network.

Air cooled.

Suitable for our low power range of RF Generators between 50 -150W.

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

AMN 600 (600W)

High Efficiency automatic matching network.

Air cooled.

Suitable for our low power range of RF Generators between 300 - 600W.

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

AMN 1K (1000W)

High Efficiency automatic matching network.

Air cooled.

0-1000W (1kW).

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

AMN 3K ( 3000W)

High Efficiency automatic matching network.

Air cooled.

0-3,000W (3kW).

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

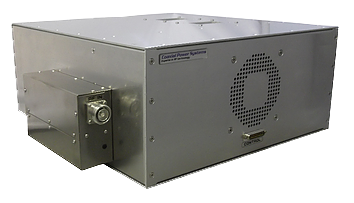

AMN 5K (5000W)

High Efficiency automatic matching network.

0-5,000W (5kW).

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

Air or water cooled as required.

AMN 10K (10,000W)

High Efficiency automatic matching network.

0-10,000W (10kW).

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

Air or water cooled as required.

AMN 15K (15,000W)

High Efficiency automatic matching network.

0-15,000W (15kW).

Frequencies available 13.56MHz and 27.12MHz (Other frequencies are available on request).

Air or water cooled as required.

AMN 30KW - 100KW

Higher powered matching networks are available.

These systems can be application specific.

Contact CPS for details.

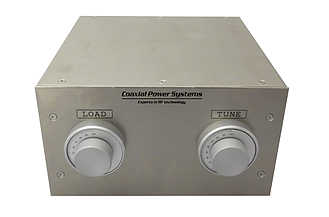

MMN 150

High Efficiency Manual Matching Network.

Standard units available up to 2kW. Higher powers available on request.

Unit shown is MMN 150 (150W).
